Overview

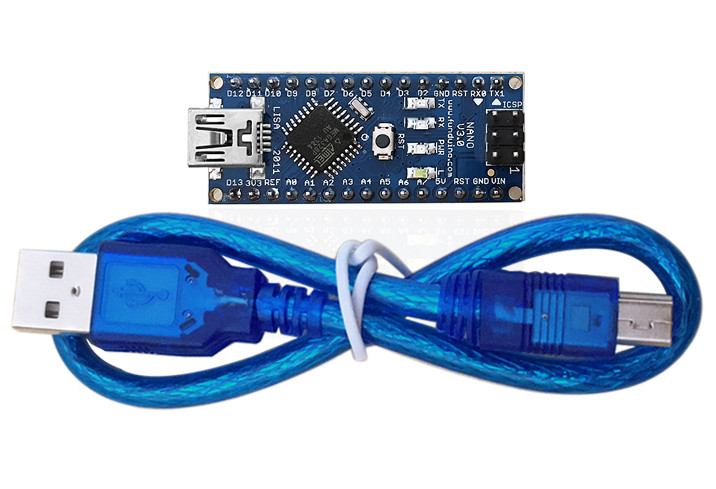

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328. It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one. The Nano was designed and is being produced by Gravitech.

Summary

• Microcontroller : ATmega328

• Operating Voltage (logic level) : 5 V

• Input Voltage (recommended) : 7-12 V

• Input Voltage (limits) : 6-20 V

• Digital I/O Pins : 14 (of which 6 provide PWM output)

• Analog Input Pins : 8

• DC Current per I/O Pin : 40 mA

• Flash Memory : 32 KB of which 2 KB used by bootloader

• SRAM : 2 KB

• EEPROM : 1 KB

• Clock Speed : 16 MHz

• Dimensions : 0.73" x 1.70"

Details

For details, visit Arduino Nano 3.0 page.

Resource

1  Visit Arduino Official Site.
2  Learn Arduino - Getting Started.
3  Download Arduino Software, it is free, open source, and available for Windows, Mac OS, and Linux.
4  The official Arduino multi-lingual forum is the place to start with questions ...
