High-performance, Low-power Atmel AVR 8-bit Microcontroller.
| Advanced RISC Architecture, up to 16MIPS Throughput at 16MHz. | |
| 8K Bytes of In-System Self-programmable Flash program memory | |
| 512 Bytes EEPROM | |
| 1KByte Internal SRAM | |
| Two 8-bit Timer/Counters with Separate Prescaler, one Compare Mode | |
| One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode | |
| Three PWM Channels | |
| 6-channel ADC (10-bit accuracy) | |
| Byte-oriented Two-wire Serial Interface | |
| Programmable Serial USART | |
| Master/Slave SPI Serial Interface | |
| Programmable Watchdog Timer with Separate On-chip Oscillator | |
| On-chip Analog Comparator | |
| 23 Programmable I/O Lines | |

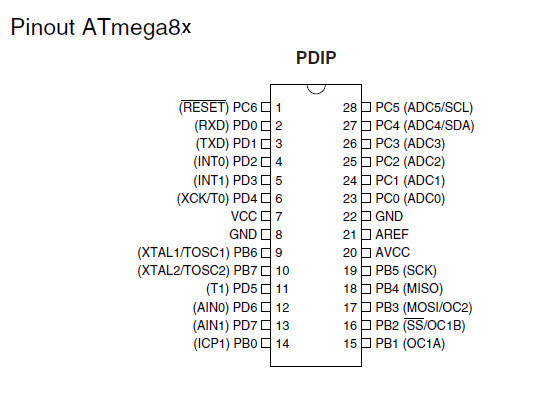

| 28-lead PDIP | |
| Operating Voltage | 2.7 - 5.5V |
| 0 - 16MHz |
| 1 Specification | Download |
