HIgh performance RISC 8-bit CMOS FLASH Microcontroller.
| High performance RISC CPU | |
| 2K x 14 words of FLASH Program Memory | |
| 224 x 8 bytes of Data Memory (RAM) | |
| 128 bytes EEPROM Data Memory | |
| Interrupt capability | |
| Eight level deep hardware stack | |
| Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation | |
| Programmable code protection | |
| Power saving SLEEP mode | |
| In-Circuit Serial Programming (ICSP) via two pins | |
| Two 8-bit timer/counter with 8-bit prescaler | |
| One 16-bit timer/counter with prescaler | |
| Two analog comparators | |
| Capture, Compare, PWM modules | |
| Addressable Universal Synchronous/Asynchronous Receiver/Transmitter USART/SCI | |
| Brown-out detection circuitry for Brown-out Reset (BOR) | |
| High Sink/Source CurrenT | |
| 16 Programmable I/O Lines | |

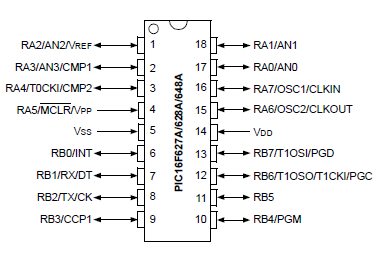

| 18-lead PDIP | |
| Operating Voltage : 2.0V - 5.5V | |
| 0 - 20MHz |
| 1 Specification | Download |
