HIgh performance RISC 8-bit CMOS FLASH Microcontroller.
| High performance RISC CPU | |
| 8K x 14 words of FLASH Program Memory | |
| 368 x 8 bytes of Data Memory (RAM) | |
| 256 bytes EEPROM Data Memory | |
| Interrupt capability (14 sources) | |
| Eight level deep hardware stack | |
| Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation | |
| Programmable code protection | |
| Power saving SLEEP mode | |
| Selectable oscillator options | |
| In-Circuit Serial Programming (ICSP) via two pins | |
| Two 8-bit timer/counter with 8-bit prescaler | |
| One 16-bit timer/counter with prescaler | |
| Two Capture, Compare, PWM modules | |
| 10-bit, 8-channel Analog-to-Digital converter | |
| Synchronous Serial Port (SSP) with SPI (Master mode) and I2C (Slave) | |
| Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI) | |
| Brown-out detection circuitry for Brown-out Reset (BOR) | |
| High Sink/Source Current: 25 mA | |
| 33 Programmable I/O Lines | |

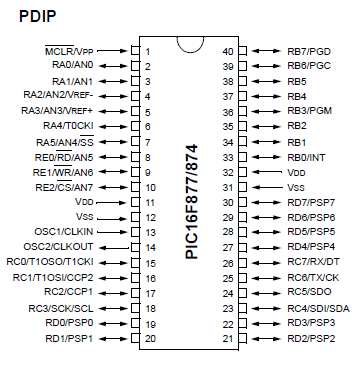

| 40-lead PDIP | |
| Operating Voltage : 2.0V - 5.5V | |
| 0 - 20MHz |
