Product Description

• Work with Arduino Uno.

• 4x4x4 LED Cube, do it yourself.

• LEDs is Blue Color.

• Used up all the Uno I/O.

Soldering Hints

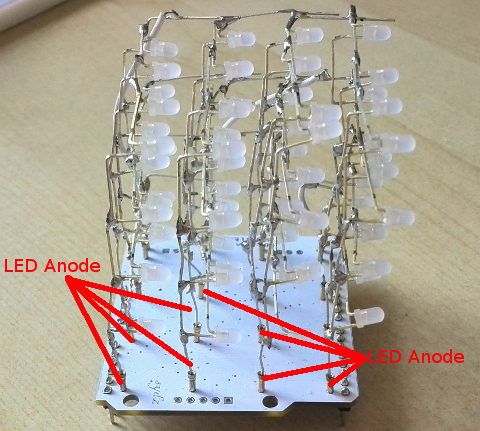

1. All LED's anode are connect to the 16 small socket on the board.

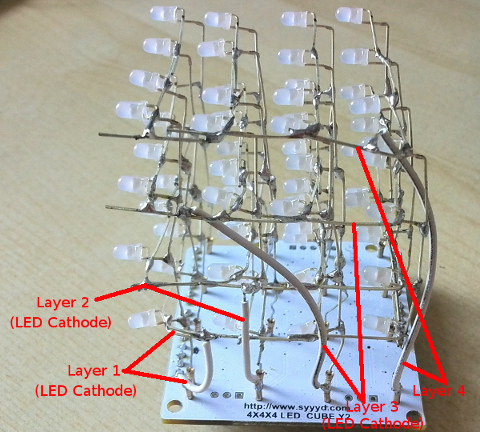

2. Each layer 16 LEDs(4x4) cathode are connected together and then connect to Layer0 ~ Layer3 pin at pcb.

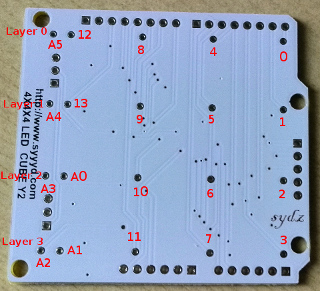

Pins

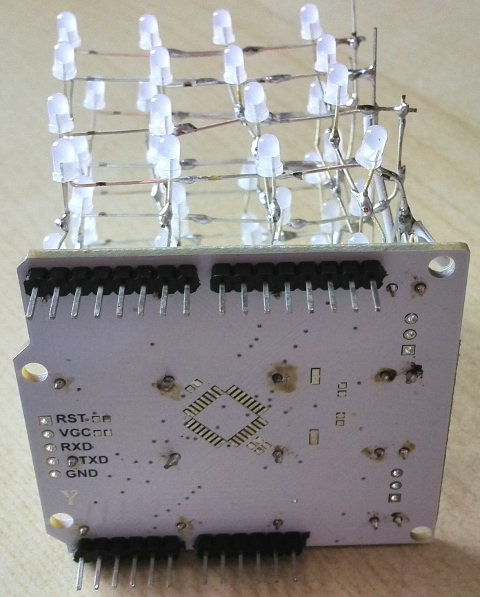

Picture 1

Picture 2

Picture 3
