Description
The is a PWM/Servo Driver will drive up to 16 servos over USB with no driver require. The on-board PWM generator will drive all 16 channels simultaneously with no additional Arduino processing overhead.

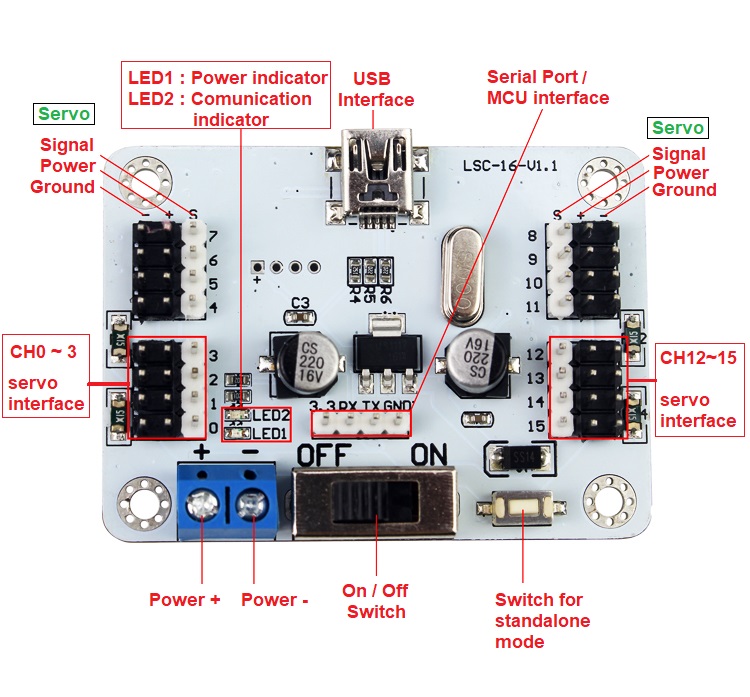

Features
- High precision 16 Channel Servo Controller power by ARM Cortex-M3 processor
- On board power on/off switch
- Control through USB without driver
- 16M memory for 230 groups, 510 action per group
- Switch for standalone mode.
- Control by Arduino or others MCU through serial port (rx, tx)
- With signal isolation protection, prevent CPU damage.
Specification
Operating Voltage
DC 5V ~ 8.4V
Support Servo Quantity
16
Serial Port Baud Rate
9600bps
Dimension (Mounting Hole)
49mm x 34mm

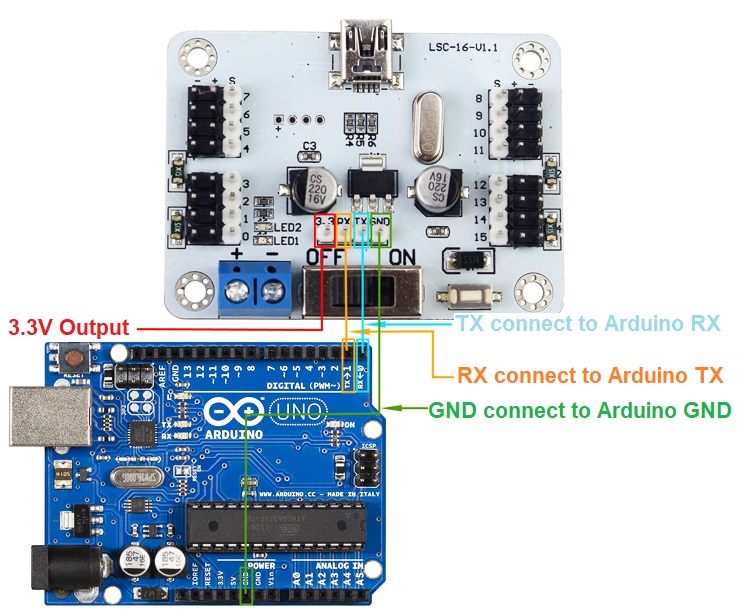

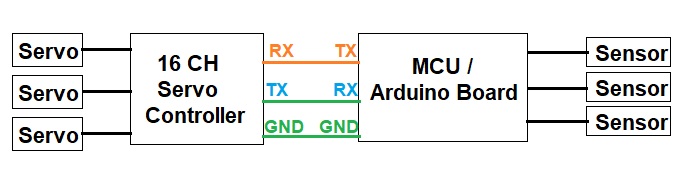

Working with MCU/Arduino

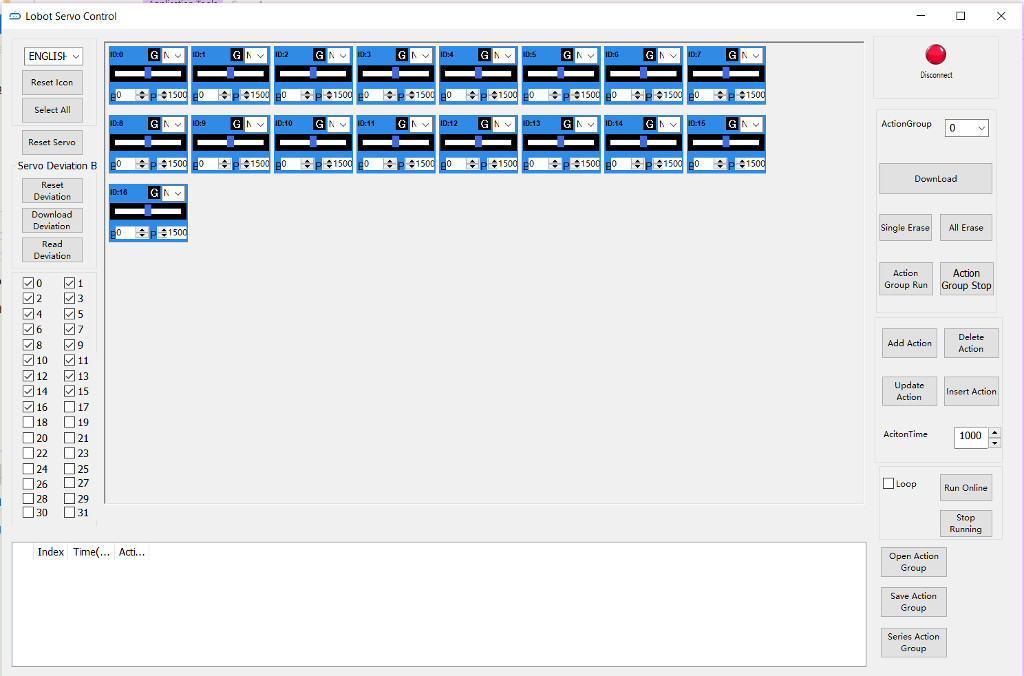

PC Software
