Specification

• Model: FS5103R

• Dimension: 40.15mm x 20.15mm x 37.2mm

• Operating Voltage: 4V ~ 8.4V

• No Load Speed: 0.125sec/60°@6V

• Runnign Current(no load): 210mA@6V

• Peak Stall Torque: 3.2kg.cm@6V

• Rated Torque: 1.0kg.cm@6V

• Stall Current: 1.1A@6V

• Control System Type: Analog comparator

• Pulse Width Range: 1200→1800 μsec

• Stop Position: 1500（±9） μsec

• Running Degree: 360°Continuous rotation

• Dead Band Width: ≤18 μsec

• Weigth: 41.5± 1g

Details specification

• FS5103R Product Specification

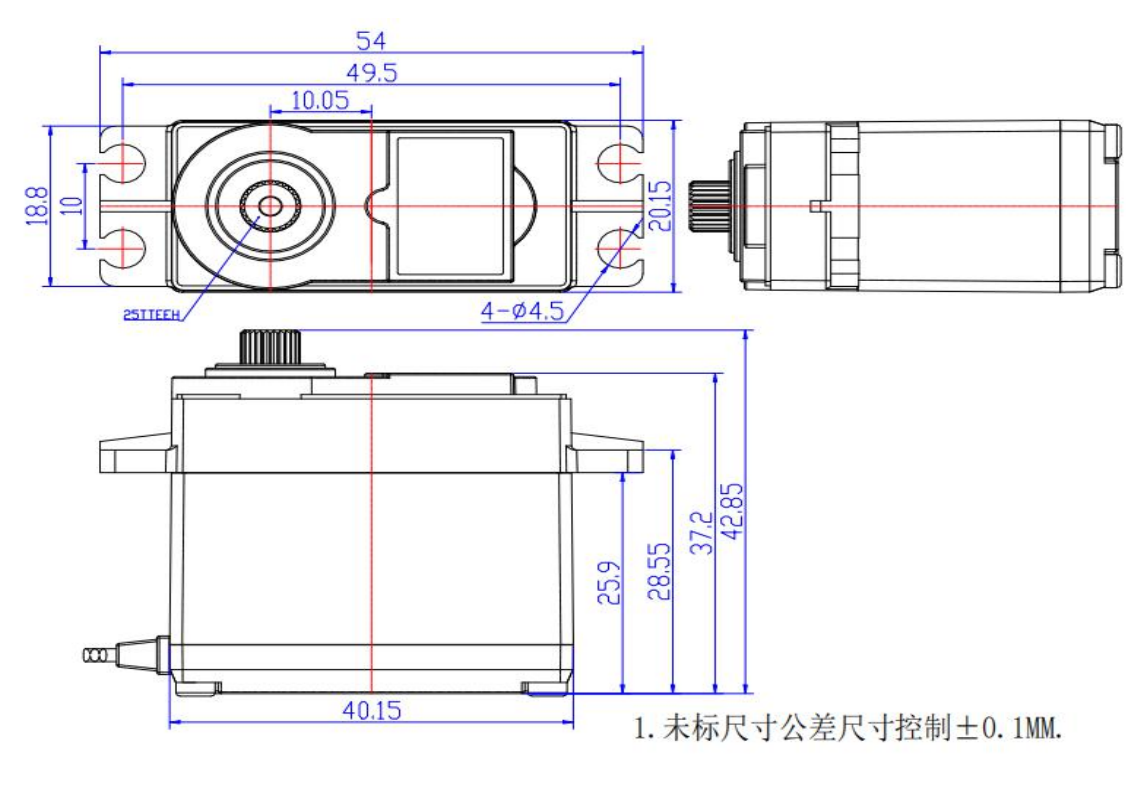

Dimension
