Description
This is a metal gear RC Servo with 17kg.cm torque. It's comes wtih overheat protection feature, it's suitable use for Gripper / Clamp / Claw control.
Why Digital Servo
- Higher resolution - less deadband, more accurate positioning
- Faster control response - increased acceleration
- Constant torque throughout the servo travel
- Increased holding power when stationary
Specification
Stall Torque
15kg.cm @6V; 17kg.cm @7.4V
Operating Voltage
DC 6V ~ 7.4V
Operating Speed
0.16s/60° (7.4V without load)
Pulse Width Range
500 ~ 2500µsec
Pin Definitions
Red Wire
Connect to DC6V ~ 7.4V
Black Wire
Connect to ground

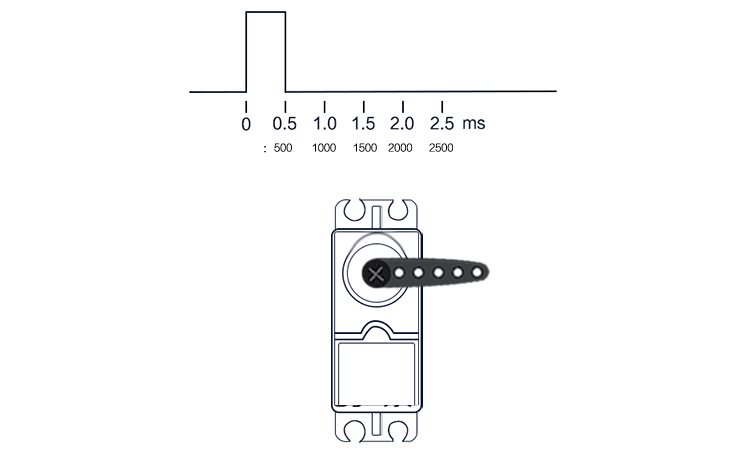

PWM Control:
