Overview

• Dual MOSFET parallel active output, lower internal resistance, larger current, strong power, 15A, 400W.

• Wide voltage, support PWM;

• Easily to control of high-power equipment.

Product parameters and applications

• Working voltage: DC 5V--36V

• Trigger signal source: digital high and low level (DC3.3V--20V), which can be connected to IO port of single-chip microcomputer, PLC interface, DC power supply, etc., can be connected to PWM signal, signal frequency 0--20KHZ support.

• Output capacity: DC 5V--36V, continuous current 15A at room temperature, power 400W! Under the condition of auxiliary heat dissipation, the maximum current can reach 30A.

• Application: The output terminal can control high-power equipment, motors, light bulbs, LED strips, DC motors, micro-pumps, solenoid valves, etc., and can input PWM to control motor speed, lamp brightness, etc.

• Working temperature: -40 ~ 85deg C

• Dimension: 34mm x 17mm x 12mm

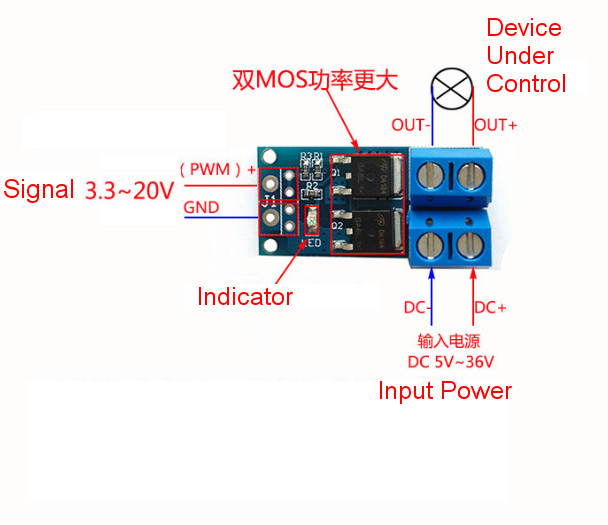

How to use
