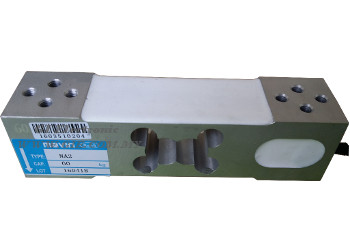

Overview

A load cell is a transducer that is used to create an electrical signal whose magnitude is directly proportional to the force being measured. It use to sense the presence of something by measuring strain or a load on some surface.

Features

• Rated Load : 60Kg

• Rated Output : 2.0 mV/V ± 5%

• Output Resistance : 350 ± 5Ω

• Input Resistance : 390 ± 15Ω

• Material : Aluminum Alloy, Steel Alloy

• Operating Temperature : -20°C ~ 60°C

• Safe Overload : 150%R.O.

• Max. Excitation : 15 VDC

• Recommend Excitation : 5 ~ 12 VDC

• Zero Balance : ± 0.02 mV/V

• Insulation Resistance : ≥5000 MΩ/(50VDC)

• Seal Type : IP66 / IP67

• Dimension : 150mmcm x 40mm x 35mm

Pin Definition

• Red Wire : Excitation '+'

• Black Wire : Excitation '-'

• Green Wire : Signal '+'

• White wire : Signal '-'

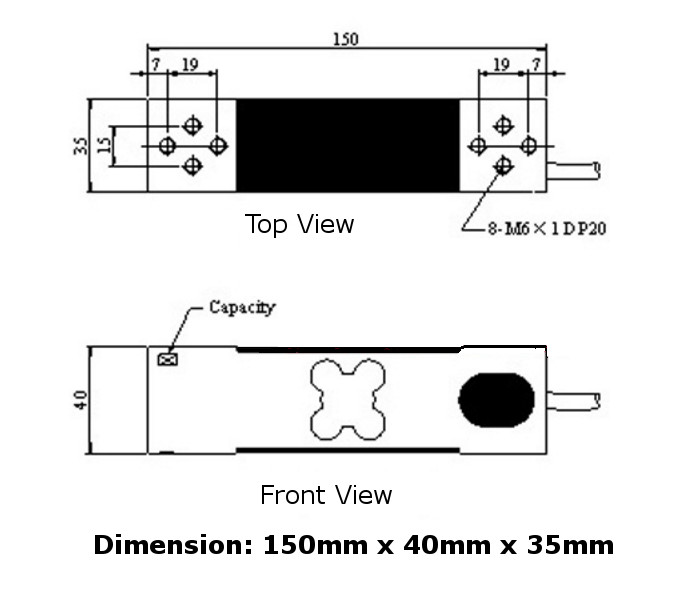

Dimension
