Features

• Touch Sensor Module

• LED indication

• High sensitivity, able to detect when it separated by paper, glass, resin, non-conductive materials

• Dimension: 32mm x 21mm

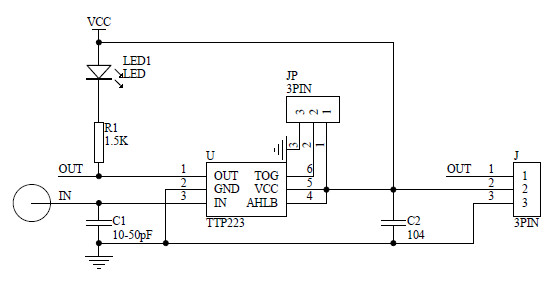

Pin Definition

• GND : Connect to Ground

• VCC : Connect to 3.3V or 5V

• SIG : Digital output. 'L' when pressed, 'H' when release.
